What is the difference between deep groove bearings and self-aligning ball bearings？

Ball bearings are important components in various mechanical systems, used to reduce friction and allow smooth rotation of shafts or axles. Among the many types, two commonly used varieties are deep groove ball bearings and aligning ball bearings. While both serve similar purposes, they have different functions and applications. Here we’ll take a closer look at the differences between these two types of bearings.

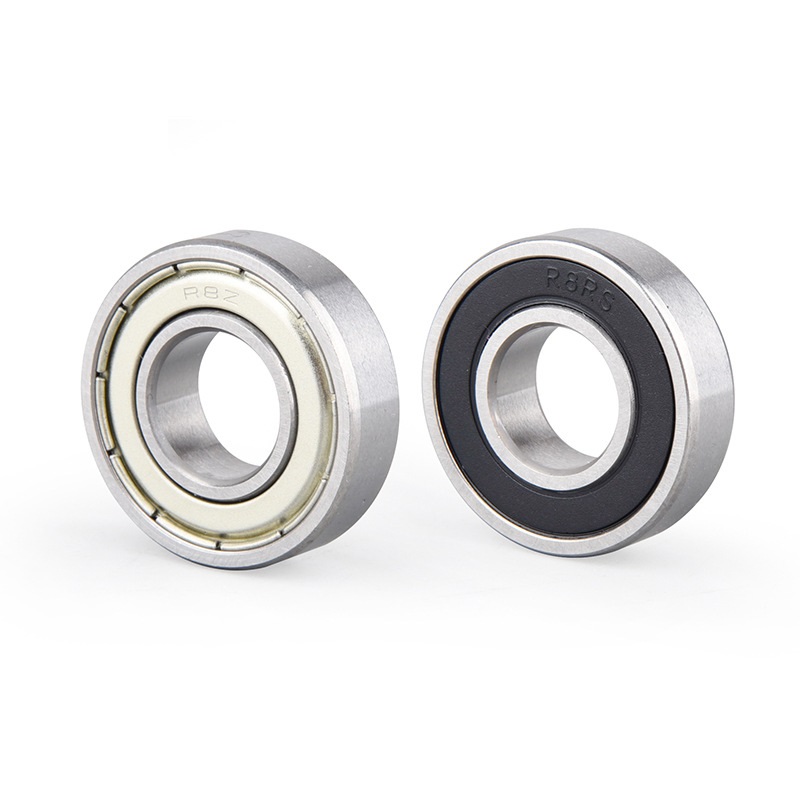

Deep Groove Ball Bearings:

Deep groove ball bearings are characterized by a simple design consisting of an inner and outer ring with deep raceway grooves. These grooves facilitate the smooth movement of the balls within the bearing, allowing it to support radial and axial loads in both directions. The main features of deep groove ball bearings include:

• Radial Load Capacity: Deep groove ball bearings are primarily designed to support radial loads, making them suitable for applications where the primary forces act perpendicular to the axis of the shaft.
• High Speed: The simple design and low friction of deep groove ball bearings make them ideal for high-speed operation, such as in electric motors, pumps and gearboxes.
• Minimum axial clearance: These bearings typically have minimum axial clearance, which means they are less tolerant of misalignment between shafts.

Self-aligning Ball Bearings:

Self-aligning ball bearings adopt a two-row ball and spherical outer ring raceway design. This unique design allows the bearing to accommodate misalignment between the shaft and housing, providing greater flexibility and performance under challenging operating conditions. The main features of self-aligning ball bearings include:

• Misalignment compensation: Self-aligning ball bearings can tolerate a certain degree of misalignment of the shaft relative to the housing. This feature makes them ideal for applications where shaft deflection or misalignment is common, such as conveyor systems or agricultural machinery.
• Moderate speeds: While self-aligning ball bearings can operate at moderate speeds, they may not be as suitable for high-speed applications as deep groove ball bearings due to their more complex design.
• Axial Load Capacity: In addition to radial loads, self-aligning ball bearings can support axial loads in both directions, thereby enhancing their versatility in a variety of applications.

Compare:

• Load Capacity: Deep groove ball bearings excel at supporting radial loads, while self-aligning ball bearings provide a balance between radial and axial load capabilities.
• Speed: Deep groove ball bearings are generally better suited for high-speed applications, while self-aligning ball bearings are better suited for medium-speed operation.
• Misalignment Tolerance: Self-aligning ball bearings have the advantage of accommodating shaft misalignment, while deep groove ball bearings require more precise alignment for optimal performance.

It can be seen that both deep groove bearings and self-aligning ball bearings play a vital role in mechanical systems, and each bearing has unique advantages based on specific application requirements.Understanding the differences between these two types of bearings is critical to choosing the most appropriate option for a given use case. Whether rotating at high speeds or accommodating misalignment, choosing the right bearings can improve the efficiency and reliability of your mechanical equipment.
