What Feature Makes Tapered Roller Bearings Unique?
What Feature Makes Tapered Roller Bearings Unique?
August 30, 2024
Tapered roller bearings are key components in a variety of mechanical applications, where durability, precision, and reliability are critical. Unlike other types of bearings, tapered roller bearings are uniquely designed to carry both axial and radial loads, making them suitable for different applications. WISON Bearings will introduce you to the unique features of tapered roller bearings, their construction, working principles, and practical applications across industries.
1. Understanding Tapered Roller Bearings

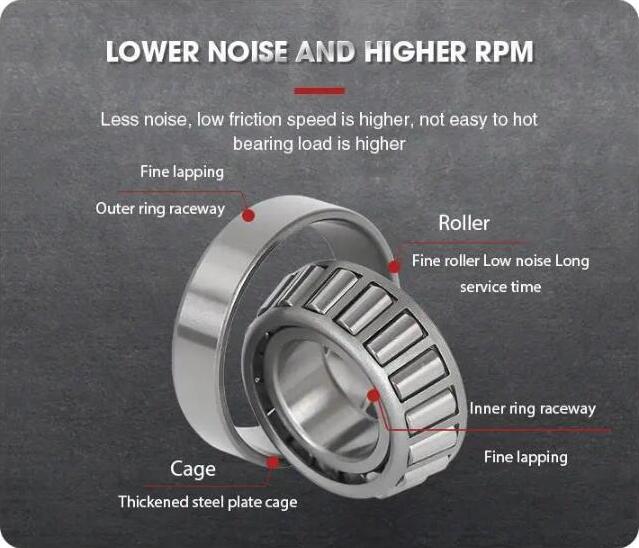

Tapered roller bearings consist of four key components: an inner ring (cone), an outer ring (cup), tapered rollers, and a cage that holds the rollers in place. The rollers are shaped like truncated cones, providing a larger contact area and distributing loads more efficiently. The tapered design enables these bearings to carry combined loads, meaning they can carry both thrust (axial) and radial forces.
2. Unique Design Features
The most notable feature of tapered roller bearings is their geometric design. The inner and outer ring raceways are designed at an angle, and the tapered shape of the rollers enables them to align with the raceways. This unique geometry reduces friction, enhances load distribution, and provides better contact between the raceways and rolling elements. This results in several advantages:
Load Capacity: Tapered roller bearings have a high load capacity, making them ideal for heavy-duty applications where high radial and thrust loads are present.
Reduced Friction: The tapered design minimizes friction and heat generation, which extends the life of the bearing and reduces maintenance costs.
Alignment Capability: The angle of the raceways allows for slight misalignment between the shaft and housing, reducing the risk of operational issues.
3. Applications of Tapered Roller Bearings
Tapered roller bearings are widely used in various industries due to their ability to manage combined loads and high performance. Some notable applications include:
Automotive Industry: These bearings are frequently used in car and truck wheel hubs, differentials, and transmissions. The ability to manage thrust and radial loads makes them ideal for automotive applications where durability and precision are critical.
Aerospace: In aircraft where precision and reliability are critical, tapered roller bearings are used in landing gear, transmission systems, and engine components.
Heavy Machinery: Construction, mining, and agricultural equipment utilize tapered roller bearings because they are rugged and built to withstand extreme loads and harsh environments.
Railroads: Railroad axleboxes use these bearings to ensure safe and efficient transportation of freight and passengers.
Higher load capacity: Due to the tapered shape and larger contact area, tapered roller bearings have superior load capacity compared to ball bearings.
Longer service life: With reduced friction and effective load distribution, these bearings experience less wear, resulting in longer service life.
Application versatility: The ability to accommodate both radial and axial loads makes tapered roller bearings more versatile than cylindrical roller bearings, which are primarily designed for radial loads.
5. Material and Manufacturing Considerations
Tapered roller bearings are typically made from high-quality alloy steels that are heat treated to increase hardness, wear resistance, and fatigue life. Manufacturing precision is critical to ensure optimal performance and service life. Factors such as surface finish, material uniformity, and dimensional accuracy can significantly affect the performance of a bearing in demanding applications.
6. Maintenance and Lubrication
Proper maintenance and lubrication are essential to the life and efficient performance of tapered roller bearings. Grease or oil lubrication helps reduce friction, prevent contamination and dissipate heat. Regular inspection, proper alignment and ensuring the right type of lubricant are essential practices to prevent premature bearing failure.
7. Challenges and Innovations in Tapered Roller Bearings
While tapered roller bearings offer a variety of benefits, there are also some challenges. For example, precise alignment is essential to prevent uneven load distribution that can lead to premature wear. However, continued innovation in bearing materials, lubrication technology, and manufacturing processes are addressing these issues. For example, the use of advanced ceramics such as silicon nitride can provide better performance in high-temperature environments and provide increased wear resistance.
8. The Future of Tapered Roller Bearings
With advances in materials science and engineering, the future of tapered roller bearings looks bright. The focus is on increasing load capacity, reducing weight, and improving energy efficiency. This will lead to the development of bearings that are not only more durable but also more sustainable and cost-effective. Using the Internet of Things (IoT) for digital monitoring and predictive maintenance is an emerging trend that can optimize bearing performance and extend service life.
As can be seen, tapered roller bearings are uniquely designed to accommodate both axial and radial loads, making them an indispensable bearing in a variety of industrial applications. Their high load capacity, low friction, and self-aligning capabilities set them apart from other types of bearings. As the industry develops, the demand for high-performance, durable and efficient bearings will continue to grow, solidifying the importance of tapered roller bearings in future mechanical engineering.
