The bearing comes with an adapter sleeve, which is a cylindrical sleeve that slides over a tapered shaft. The inner surface of the sleeve typically has a taper that matches the shaft's taper.
Item No :
UK205Order(MOQ) :
100pcsPayment :
T/T L/C Western Union, MoneygramProduct Origin :
ChinaShipping Port :
Guangzhou or ShenzhenLead Time :

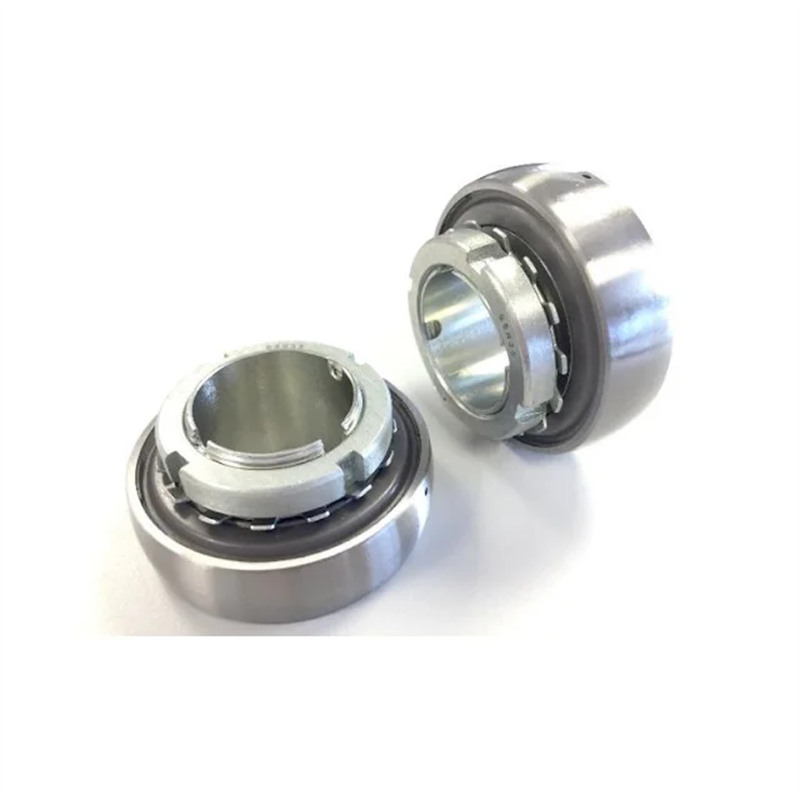

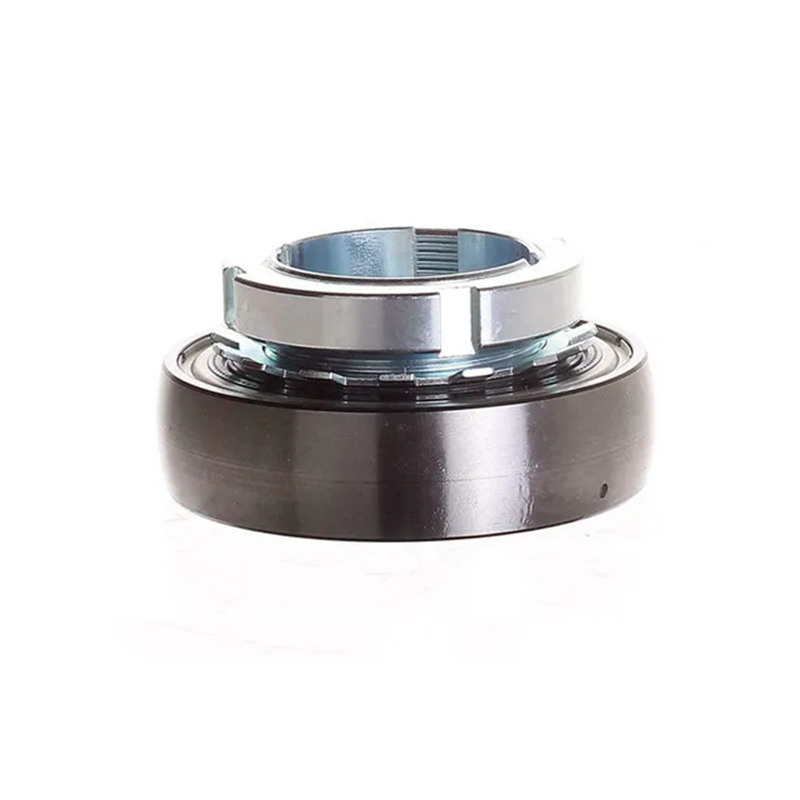

5-60 daysUK series Adapter sleeve locking type insert ball bearings
Adapter sleeve locking type insert ball bearings are a type of bearing designed for use in applications where it's necessary to mount a bearing on a shaft with a tapered bore. These bearings are commonly used in situations where there's a need for easy installation, removal, and adjustment of bearings on a shaft.
Application :
* Agricultural Applications
* Construction machinery
* Food and beverage processing and packaging
* Conveyor systems
* Material handling systems
* Packaging systems
* Textile equipment
* Air Handling
* Special machinery, e.g. car wash systems, gym equipment, go-karts,etc

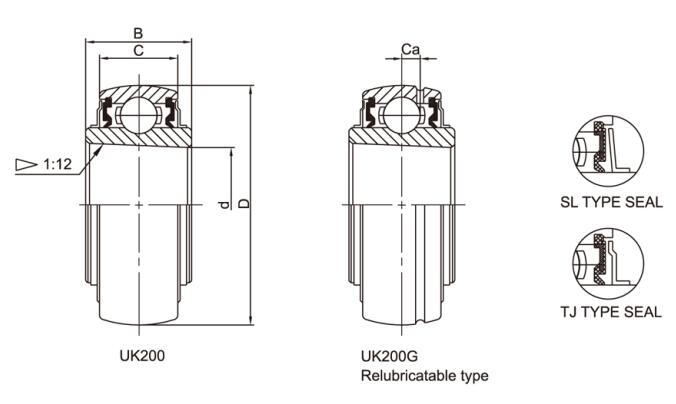

Insert ball bearing UK series with adapter sleeve locking:
Bearing No. |
Dimensions(mm) |
Basic Load Rating |
Weight |
||||||
|
d1 |
d |
D |
B |
C |
Ca |
Dvnamic Cr |
Static Cor |
(kg) |
UK205 |
20 |
25 |
52 |
23 |
17 |
4 |
14.03 |
8.05 |
0.21 |
UK206 |
25 |
30 |
62 |
26 |
19 |
5.3 |
19.47 |
11.43 |
0.31 |
UK207 |
30 |
35 |
72 |
28 |
20 |
5.8 |
25.69 |
15.55 |
0.46 |
UK208 |
35 |
40 |
80 |
29 |
21 |
6.2 |
29.51 |
18.14 |
0.63 |
UK209 |
40 |
45 |
85 |
30 |
22 |
6.5 |
31.85 |
20.8 |
0.68 |
UK210 |
45 |
50 |
90 |
32 |
24 |
7 |
34.99 |
23.7 |
0.78 |
UK211 |
50 |
55 |
100 |
36 |
25 |
7.4 |
43.34 |
29.39 |
1.07 |
UK212 |
55 |
60 |
110 |
38 |
27 |
7.6 |
47.68 |
33.43 |
1.51 |
UK213 |
60 |
65 |
120 |
40 |
28 |
8.5 |
57.2 |
40.01 |
1.86 |
UK215 |
65 |
75 |
130 |
43 |
30 |
9.2 |
62.08 |
44.82 |
2.21 |
UK216 |
70 |
80 |
140 |
45 |
33 |
9.5 |
72.62 |
53.34 |
2.79 |
UK217 |
75 |
85 |
150 |
46 |
35 |
11.1 |
83.15 |
65.54 |
3.38 |
UK218 |
80 |
90 |
160 |
47 |
37 |
11.8 |
95.84 |
72.64 |
4.46
|
