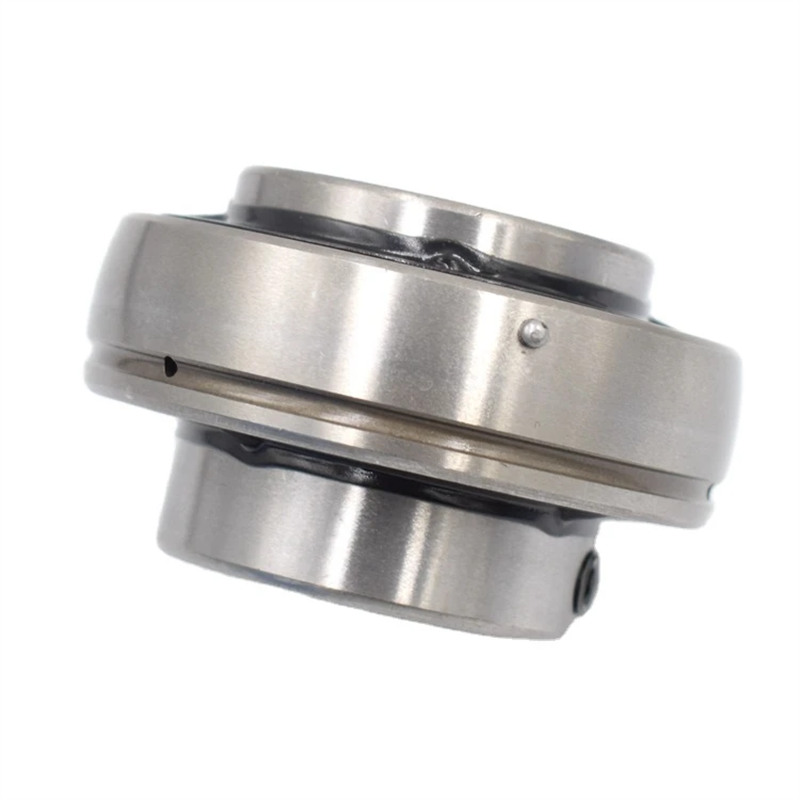

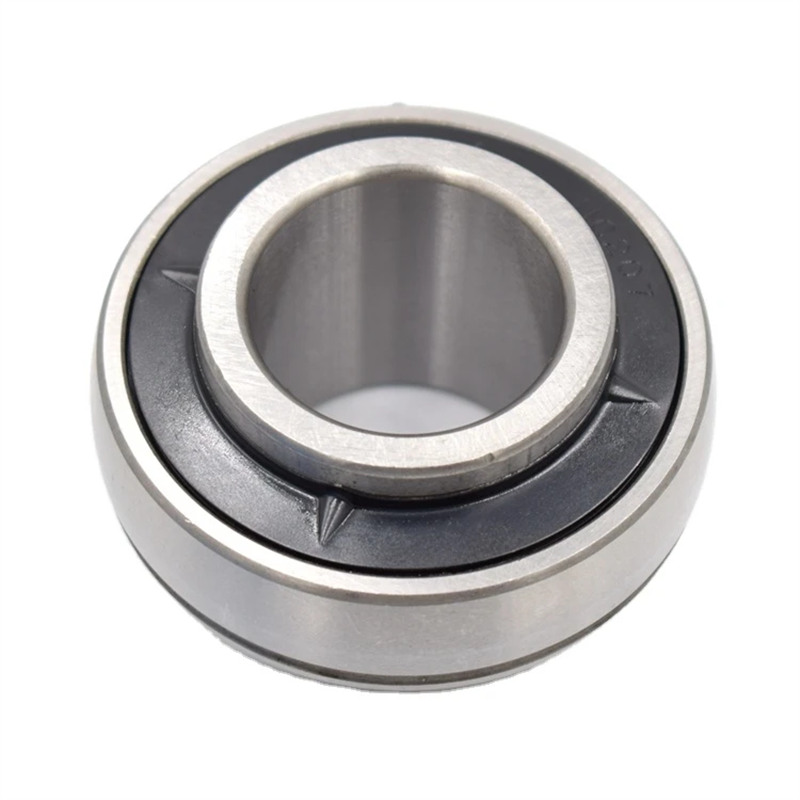

UC series set screw type insert ball bearings

UC series set screw type insert ball bearings

UC series insert bearings are single row ball bearing, with spherical outer ring and set-screw locking,parallel bore.

  • Item No :

    UC201
  • Order(MOQ) :

    100pcs
  • Payment :

    T/T L/C Western Union, Moneygram
  • Product Origin :

    China
  • Shipping Port :

    Guangzhou or Shenzhen
  • Lead Time :

    5-60 days

UC series set screw type insert ball bearings

Insert bearings and wide inner ring bearings are used for mounting on shafts without the need for shoulders, locknuts, or adapters. The bearing is locked in place through setscrews or a locking collar. The inner ring usually extends on both sides of the bearing to provide extra shaft support.



Application :

* Agricultural Applications

* Construction machinery

* Food and beverage processing and packaging

* Conveyor systems

* Material handling systems

* Packaging systems

* Textile equipment

* Air Handling

* Special machinery, e.g. car wash systems, gym equipment, go-karts,etc

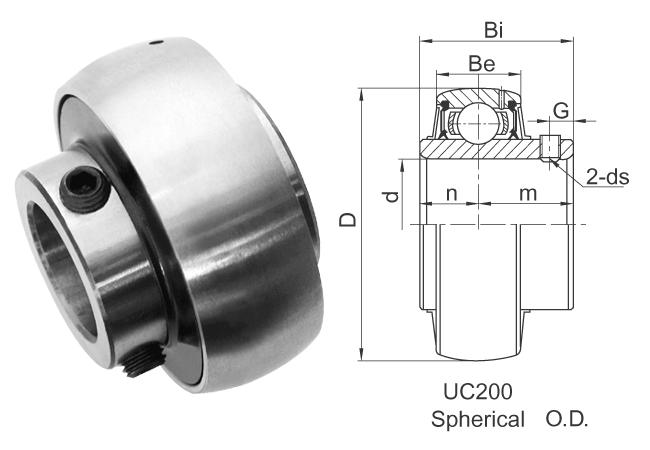

Photo:

Bearing



No.

Shaft Dia.

d

Dimensions

in. or mm

Basic Dynamic

Load Rating

Basic Static

Load Rating

Weight















in

mm

D

Bi

Be

n

m

G

ds

kg

kg

kg

UC201

-

12

47

31.0

17

12.7

18.3

5.0

M6X0.75

1000

630

0.21

UC201-8

1/2

-

1.8504

1.2205

0.6693

0.5

0.7205

0.197

1/4-28UNF

1000

630

0.20

UC202

-

15

47

31.0

17

12.7

18.3

5.0

M6X0.75

1000

630

0.19

UC202-10

5/8

-

1.8504

1.2205

0.6693

0.5

0.7205

0.197

1/4-28UNF

1000

630

0.19

UC203

-

17

47

31.0

17

12.7

18.3

5.0

M6X0.75

1000

630

0.18

UC203-11

11/16

-

1.8504

1.2205

0.6693

0.5

0.7205

0.197

1/4-28UNF

1000

630

0.17

UC204-12

3/4

-

1.8504

1.2205

0.6693

0.5

0.7205

0.197

1/4-28UNF

1000

630

0.16

UC204

-

20

47

31.0

17

12.7

18.3

5.0

M6X0.75

1000

630

0.16

UC205-14

7/8

-

2.0472

1.342

0.6693

0.563

0.779

0.197

1/4-28UNF

1100

710

0.23

UC205-15

15/16

-

2.0472

1.342

0.6693

0.563

0.779

0.197

1/4-28UNF

1100

710

0.21

UC205

-

25

52

34.1

17

14.3

19.8

5.0

M6X0.75

1100

710

0.20

UC205-16

1

-

2.0472

1.342

0.6693

0.563

0.779

0.197

1/4-28UNF

1100

710

0.20

UC206-18

1 1/8

-

2.4409

1.50

0.748

0.626

0.874

0.197

1/4-28UNF

1520

1020

0.34

UC206-19

1 3/16

-

2.4409

1.50

0.748

0.626

0.874

0.197

1/4-28UNF

1520

1020

0.34

UC206

-

30

62

38.1

19

15.9

22.2

5.0

M6X0.75

1520

1020

0.32

UC206-20

1 1/4

-

2.4409

1.50

0.748

0.626

0.874

0.197

1/4-28UNF

1520

1020

0.32

UC207-20

1 1/4

-

2.8346

1.689

0.7874

0.689

1.00

0.2559

5/16-24UNF

2010

1390

.054

UC207-21

1 5/16

-

2.8346

1.689

0.7874

0.689

1.00

0.2559

5/16-24UNF

2010

1390

0.51

UC207-22

1 3/8

-

2.8346

1.689

0.7874

0.689

1.00

0.2559

5/16-24UNF

2010

1390

0.48

UC207

-

35

72

42.9

20

17.5

25.4

6.0

M8X1.0

2010

1390

0.48

UC207-23

1 7/16

-

2.8346

1.689

0.7874

0.689

1.00

0.2559

M8X1.0

2010

1390

0.45

UC208-24

1 1/2

-

3.1496

1.937

0.8268

0.748

1.189

0.315

5/16-24UNF

2560

1810

0.68

UC208-25

1 9/16

-

3.1496

1.937

0.8268

0.748

1.189

0.315

M8X1.0

2560

1810

0.65

UC208

-

40

80

49.2

21

19.0

30.2

8.0

5/16-24UNF

2560

1810

0.64

UC209-26

1 5/8

-

3.3465

1.937

0.8661

0.748

1.189

0.315

5/16-24UNF

2560

1810

0.78

UC209-27

1 11/16

-

3.3465

1.937

0.8661

0.748

1.189

0.315

M8X1.0

2560

1810

0.74

UC209-28

1 3/4

-

3.3465

1.937

0.8661

0.748

1.189

0.315

5/16-24UNF

2560

1810

0.70

UC209

-

45

85

49.2

22

19.0

30.2

8.0

M8X1.0

2560

1810

0.68

UC210-30

1 7/8

-

3.5433

2.0315

0.9449

0.748

1.2835

0.3937

3/8-24UNF

2750

2020

0.87

UC210-31

1 15/16

-

3.5433

2.0315

0.9449

0.748

1.2835

0.3937

M10X1.25

2750

2020

0.82

UC210

-

50

90

51.6

24

19.0

32.6

10

3/8-24UNF

2750

2020

0.80

UC210-32

2

-

3.5433

2.0315

0.9449

0.748

1.2835

0.3937

M10X1.25

2750

2020

0.80

UC211-32

2

-

3.937

2.189

0.9843

0.874

1.315

0.3937

3/8-24UNF

3400

2550

1.26

UC211-34

2 1/8

-

3.937

2.189

0.9843

0.874

1.315

0.3937

M10X1.25

3400

2550

1.15

UC211

-

55

100

55.6

25

22.2

33.4

10

3/8-24UNF

3400

2550

1.11

UC211-35

2 3/16

-

3.937

2.189

0.9843

0.874

1.315

0.3937

M10X1.25

3400

2550

1.09

UC212-36

2 1/4

-

4.3307

2.563

1.063

1.00

1.563

0.3937

3/8-24UNF

4100

3150

1.67

UC212-38

2 3/8

-

4.3307

2.563

1.063

1.00

1.563

0.3937

M10X1.25

4100

3150

1.52

UC212

-

60

110

65.1

27

25.4

39.7

10

3/8-24UNF

4100

3150

1.54

UC212-39

2 7/16

-

4.3307

2.563

1.063

1.00

1.563

0.3937

M10X1.25

4100

3150

1.45



Advantage of WIS Bearing:

  • Rich experience

With over 15 years bearing industry experience ,we have perfect group pf technical engineers give you best support

  • Competitive price and small MOQ

Direct manufacturer of bearings can offer you lowest price with small MOQ

  • Customized service

WIS bearings can provide OEM and ODM service as to your sample or drawings.

  • Strict quality control

We focus on quality during production and guarantee 100% quality inspection before delivery

  • Delivery strength

WIS bearings give you on time delivery

  • Free sample provided
