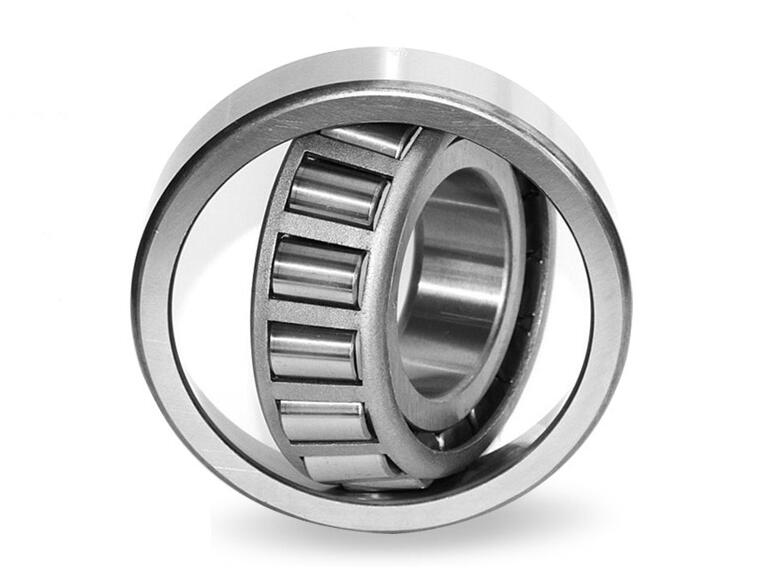

Single Row Metric Tapered Roller Bearings 30202 30203 30204 30205 30206
Tapered roller bearings are mainly used to bear the combined load in radial and axial directions. The outer ring can be separated and assembled easily. The axial clearance and radial clearance can be adjusted.
Item No :
30202 30203 30204 30205 30206Order(MOQ) :
100pcsPayment :
T/T L/C Western Union, MoneygramProduct Origin :
ChinaShipping Port :
Guangzhou or ShenzhenLead Time :
5-60 daysSingle Row Metric Tapered Roller Bearings

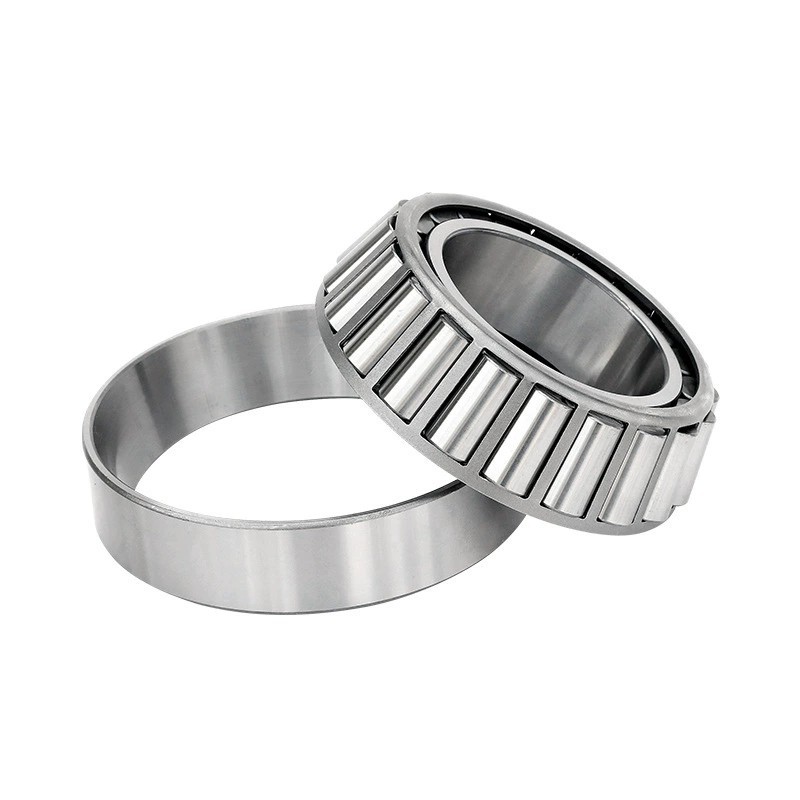

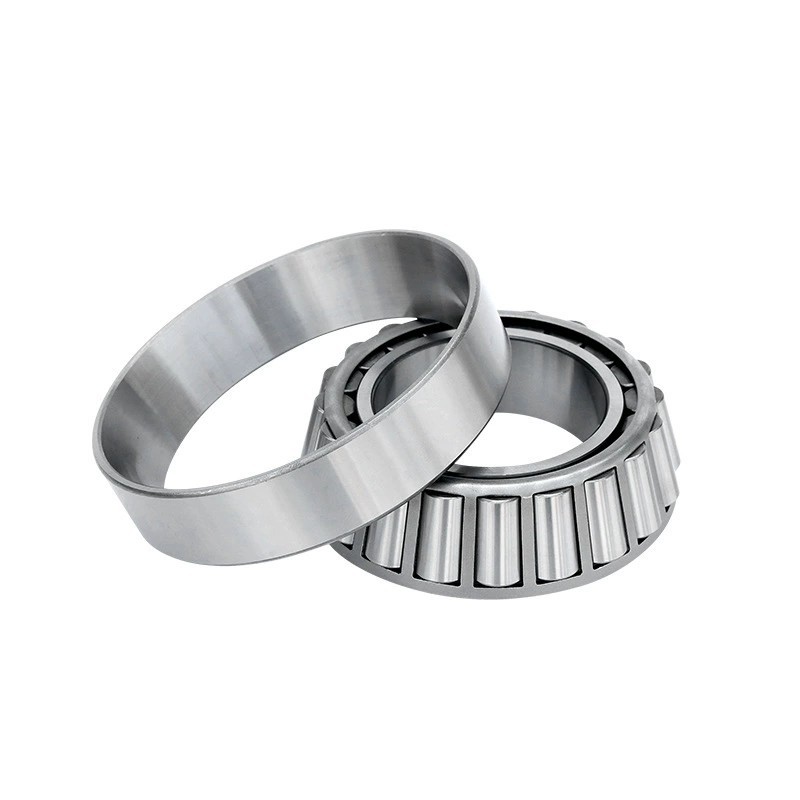

Single roller tapered roller bearings feature a cup and cone assembly. The cup is comprised of the outer ring and the cone assembly consists of inner ring, rollers, and cage. This bearing construction accommodates combined loads and provides low friction during operation. By adjusting one single row tapered roller bearing against a second tapered roller bearing and applying a preload, a rigid bearing application can be achieved.
Taper Roller Bearings Features :
Application :
It is widely use for
Display:
Metric Tapered Roller Bearings Size Chart:
|
|
|||||||||||
|
bearing No. |
Boundary dimensions (mm) |
Basic load ratings (KN) |
Limiting speeds (rpm) |
||||||||
|
d |
D |
T |
B |
C |
r min. |
r1 min. |
Cr |
Cor |
Grease lub. |
Oil lub. |
|
|
30202 |
15 |
35 |
11.75 |
11 |
10.0 |
0.6 |
0.6 |
14.9 |
13.4 |
12000 |
16000 |
|
30302 |
15 |
42 |
14.25 |
13 |
11.0 |
1.0 |
1.0 |
21.9 |
19.2 |
10000 |
14000 |
|
30203 |
17 |
40 |
13.25 |
16 |
11.0 |
1.0 |
1.0 |
20.8 |
20.7 |
10000 |
14000 |
|
30303 |
17 |
47 |
17.25 |
14 |
12.0 |
1.0 |
1.0 |
27.4 |
24.5 |
9200 |
12000 |
|
32303 |
17 |
47 |
15.25 |
19 |
16.0 |
1.0 |
1.0 |
31.9 |
29.9 |
9400 |
13000 |
|
32004 |
20 |
42 |
15.00 |
15 |
12.0 |
0.6 |
0.6 |
27.3 |
31.5 |
9700 |
13000 |
|
30204 |
20 |
47 |
15.25 |
14 |
12.0 |
1.0 |
1.0 |
27.0 |
27.2 |
8700 |
12000 |
|
32204 |
20 |
47 |
19.25 |
18 |
15.0 |
1.0 |
1.0 |
33.1 |
34.7 |
8900 |
12000 |
|
30304 |
20 |
52 |
16.25 |
15 |
13.0 |
1.5 |
1.5 |
35.0 |
33.5 |
7500 |
10000 |
|
32304 |
20 |
52 |
22.25 |
21 |
18.0 |
1.5 |
1.5 |
45.1 |
46.7 |
8400 |
11000 |
|
320/22 |
22 |
44 |
15.00 |
15 |
11.5 |
0.6 |
0.6 |
28.3 |
33.6 |
9100 |
12000 |
|
32005 |
25 |
47 |
15.00 |
15 |
11.5 |
0.6 |
0.6 |
30.2 |
37.7 |
8300 |
11000 |
|
32005A |
25 |
47 |
15.00 |
15 |
11.5 |
3.4 |
1.0 |
23.2 |
18.3 |
8000 |
11000 |
|
33005 |
25 |
47 |
17.00 |
17 |
14.0 |
0.6 |
0.6 |
27.5 |
37.0 |
8000 |
10700 |
|
30205 |
25 |
52 |
16.25 |
15 |
13.0 |
1.0 |
1.0 |
31.5 |
33.7 |
7800 |
10000 |
|
32205 |
25 |
52 |
19.25 |
18 |
16.0 |
1.0 |
1.0 |
39.8 |
44.8 |
7900 |
11000 |
|
33205 |
25 |
52 |
22.00 |
22 |
18.0 |
1.0 |
1.0 |
48.9 |
58.5 |
7900 |
1000 |
|
TR0506R |
25 |
62 |
18.25 |
17 |
14.0 |
1.5 |
1.5 |
45.0 |
45.8 |
6700 |
9000 |
|
30305 |
25 |
62 |
18.25 |
17 |
15.0 |
1.5 |
1.5 |
48.2 |
46.9 |
6800 |
9000 |
|
30305 D |
25 |
62 |
18.25 |
17 |
13.0 |
1.5 |
1.5 |
41.5 |
45.0 |
5700 |
8000 |
|
32305 |
25 |
62 |
25.25 |
24 |
20.0 |
1.5 |
1.5 |
61.2 |
64.1 |
6900 |
9100 |
|
320/28 |
28 |
52 |
16.00 |
16 |
12.0 |
1.0 |
1.0 |
35.2 |
44.0 |
7500 |
10000 |
|
332/28 |
28 |
58 |
24.00 |
24 |
19.0 |
1.0 |
1.0 |
57.6 |
69.5 |
7000 |
9300 |
|
32006 |
30 |
55 |
17.00 |
17 |
13.0 |
1.0 |
1.0 |
38.2 |
48.0 |
7000 |
9400 |
|
33006 |
30 |
55 |
20.00 |
20 |
16.0 |
1.0 |
1.0 |
39.5 |
59.5 |
6700 |
9100 |
|
30206 |
30 |
62 |
17.25 |
16 |
14.0 |
1.0 |
1.0 |
41.5 |
44.8 |
6500 |
8700 |
|
32206 |
30 |
62 |
21.25 |
20 |
17.0 |
1.0 |
1.0 |
50.7 |
57.9 |
6500 |
8700 |
|
33206 |
30 |
62 |
25.00 |
25 |
19.5 |
1.0 |
1.0 |
66.4 |
79.4 |
6500 |
8700 |
|
30306 |
30 |
72 |
20.75 |
19 |
16.0 |
1.5 |
1.5 |
59.6 |
50.1 |
5800 |
7700 |
|
TRA0607 |
30 |
72 |
20.75 |
19 |
14.0 |
1.5 |
1.5 |
56.5 |
55.2 |
5900 |
7900 |
|
32306 |
30 |
72 |
28.75 |
27 |
23.0 |
1.5 |
1.5 |
82.2 |
91.6 |
5900 |
7900 |
|
320/32 |
32 |
58 |
17.00 |
17 |
13.0 |
1.0 |
1.0 |
39.2 |
50.6 |
6700 |
8900 |
|
332/32 |
32 |
65 |
26.00 |
26 |
20.5 |
1.0 |
1.0 |
71.8 |
86.9 |
6200 |
8300 |
|
32007 |
35 |
62 |
18.00 |
18 |
14.0 |
1.0 |
1.0 |
45.5 |
59.4 |
6200 |
8200 |
|
33007 |
35 |
62 |
21.00 |
21 |
17.0 |
1.0 |
1.0 |
51.3 |
68.0 |
6200 |
8200 |
|
30207 |
35 |
72 |
18.25 |
17 |
15.0 |
1.5 |
1.5 |
55.1 |
60.9 |
5600 |
7400 |
|
32207 |
35 |
72 |
24.25 |
23 |
19.0 |
1.5 |
1.5 |
69.6 |
82.4 |
5600 |
7500 |
|
33207 |
35 |
72 |
28.00 |
28 |
22.0 |
1.5 |
1.5 |
87.6 |
107.0 |
5700 |
7500 |
|
30307 |
35 |
80 |
22.75 |
21 |
18.0 |
2.0 |
1.5 |
76.0 |
79.0 |
7750 |
8050 |
|
32307 |
35 |
80 |
32.75 |
31 |
25.0 |
2.0 |
1.5 |
101.0 |
114.0 |
5300 |
7000 |
|
32008 |
40 |
68 |
19.00 |
19 |
14.5 |
1.0 |
1.0 |
53.5 |
71.4 |
5600 |
7400 |
|
33008 |
40 |
68 |
22.00 |
22 |
18.0 |
1.0 |
1.0 |
60.4 |
84.6 |
5500 |
7400 |
|
33108 |
40 |
75 |
26.00 |
26 |
20.5 |
1.5 |
1.5 |
82.2 |
108.0 |
5200 |
6900 |
|
30208 |
40 |
80 |
19.75 |
18 |
16.0 |
1.5 |
1.5 |
62.9 |
69.2 |
5000 |
6700 |
|
32208 |
40 |
80 |
24.75 |
23 |
19.0 |
1.5 |
1.5 |
77.7 |
90.8 |
5000 |
6600 |
|
33208 |
40 |
80 |
32.00 |
32 |
25.0 |
1.5 |
1.5 |
108.0 |
139.0 |
5000 |
6700 |
|
30308 |
40 |
90 |
25.25 |
23 |
20.0 |
2.0 |
1.5 |
90.6 |
101.0 |
4500 |
6100 |
|
32308 |
40 |
90 |
35.25 |
33 |
27.0 |
2.0 |
1.5 |
116.0 |
139.0 |
4600 |
6200 |
|
32009 |
45 |
75 |
20.00 |
20 |
15.5 |
1.0 |
1.0 |
62.8 |
86.5 |
5000 |
6600 |
|
33009 |
45 |
75 |
24.00 |
24 |
19.0 |
1.0 |
1.0 |
69.6 |
101.0 |
500 |
6700 |
|
33109 |
45 |
80 |
26.00 |
26 |
20.5 |
1.5 |
1.5 |
87.5 |
120.0 |
4800 |
6400 |
|
30209 |
45 |
85 |
20.75 |
19 |
16.0 |
1.5 |
1.5 |
67.2 |
77.4 |
4600 |
6100 |
|
32209 |
45 |
85 |
24.75 |
23 |
19.0 |
1.5 |
1.5 |
84.2 |
104.0 |
4600 |
6100 |
|
33209 |
45 |
85 |
32.00 |
32 |
25.0 |
1.5 |
1.5 |
112.0 |
149.0 |
4600 |
6200 |
|
30309 |
45 |
100 |
27.25 |
25 |
22.0 |
2.0 |
1.5 |
113.0 |
128.0 |
4100 |
5400 |
|
32309 |
45 |
100 |
38.25 |
36 |
30.0 |
2.0 |
1.5 |
146.0 |
180.0 |
4100 |
5500 |
|
32010 |
50 |
80 |
20.00 |
20 |
15.5 |
1.0 |
1.0 |
65.7 |
94.5 |
4600 |
6100 |
|
33010 |
50 |
80 |
24.00 |
24 |
19.0 |
1.0 |
1.0 |
73.0 |
110.0 |
4600 |
6100 |
|
33110 |
50 |
85 |
26.00 |
26 |
20.0 |
1.5 |
1.5 |
89.4 |
127.0 |
4400 |
5900 |
|
30210 |
50 |
90 |
21.75 |
20 |
17.0 |
1.5 |
1.5 |
76.5 |
91.7 |
4300 |
5700 |
|
32210 |
50 |
90 |
24.75 |
23 |
19.0 |
1.5 |
1.5 |
85.0 |
105.0 |
4300 |
5700 |
|
33210 |
50 |
90 |
32.00 |
32 |
24.5 |
1.5 |
1.5 |
119.0 |
167.0 |
4300 |
5700 |
|
30310 |
50 |
110 |
29.25 |
27 |
23.0 |
2.5 |
2.0 |
137.0 |
152.0 |
3700 |
4900 |
|
32310 |
50 |
110 |
42.25 |
40 |
33.0 |
2.5 |
2.0 |
176.0 |
220.0 |
3700 |
5000 |
|
30310 |
50 |
110 |
29.25 |
27 |
23.0 |
2.5 |
2.0 |
137.0 |
152.0 |
3700 |
4900 |
|
32011 |
55 |
90 |
23.00 |
23 |
17.5 |
1.5 |
1.5 |
84.6 |
121.0 |
4100 |
5500 |
|
33011 |
55 |
90 |
27.00 |
27 |
21.0 |
1.5 |
1.5 |
96.5 |
145.0 |
4100 |
5400 |
|
33111 |
55 |
95 |
30.00 |
30 |
23.0 |
1.5 |
1.5 |
116.0 |
161.0 |
4000 |
5300 |
|
30211 |
55 |
100 |
22.75 |
21 |
18.0 |
2.0 |
1.5 |
94.6 |
113.0 |
3900 |
5200 |
|
32211 |
55 |
100 |
26.75 |
25 |
21.0 |
2.0 |
1.5 |
107.0 |
133.0 |
3900 |
5200 |
|
33211 |
55 |
100 |
35.00 |
35 |
27.0 |
2.0 |
1.5 |
142.0 |
189.0 |
3900 |
5200 |
|
30311 |
55 |
120 |
31.50 |
29 |
25.0 |
2.5 |
2.0 |
149.0 |
170.0 |
3300 |
4500 |
|
32311 |
55 |
120 |
45.50 |
43 |
35.0 |
2.5 |
2.0 |
200.0 |
250.0 |
3400 |
4500 |
|
32012 |
60 |
95 |
23.00 |
23 |
17.5 |
1.5 |
1.5 |
86.1 |
127.0 |
3900 |
5200 |
|
33012 |
60 |
95 |
27.00 |
27 |
21.0 |
1.5 |
1.5 |
101.0 |
162.0 |
3900 |
5200 |
|
33112 |
60 |
100 |
30.00 |
30 |
23.0 |
1.5 |
1.5 |
118.0 |
170.0 |
3700 |
5000 |
|
30212 |
60 |
110 |
23.75 |
22 |
19.0 |
2.0 |
1.5 |
106.0 |
127.0 |
3500 |
4700 |
|
32212 |
60 |
110 |
29.75 |
28 |
24.0 |
2.0 |
1.5 |
132.0 |
167.0 |
3500 |
4700 |
|
33212 |
60 |
110 |
38.00 |
38 |
29.0 |
2.0 |
1.5 |
174.0 |
239.0 |
3600 |
4700 |
|
30312 |
60 |
130 |
33.50 |
31 |
26.0 |
3.0 |
2.5 |
173.0 |
201.0 |
3100 |
4100 |
|
32312 |
60 |
130 |
48.50 |
46 |
37.0 |
3.0 |
2.5 |
244.0 |
315.0 |
3100 |
4200 |
Advantage of WIS Bearing:
With over 15 years bearing industry experience ,we have perfect group pf technical engineers give you best support
Direct manufacturer of bearings can offer you lowest price with small MOQ
WIS bearings can provide OEM and ODM service as to your sample or drawings.
We focus on quality during production and guarantee 100% quality inspection before delivery
WIS bearings give you on time delivery
Tapered roller bearings are mainly used to bear the combined load in radial and axial directions. The outer ring can be separated and assembled easily. The axial clearance and radial clearance can be adjusted.
