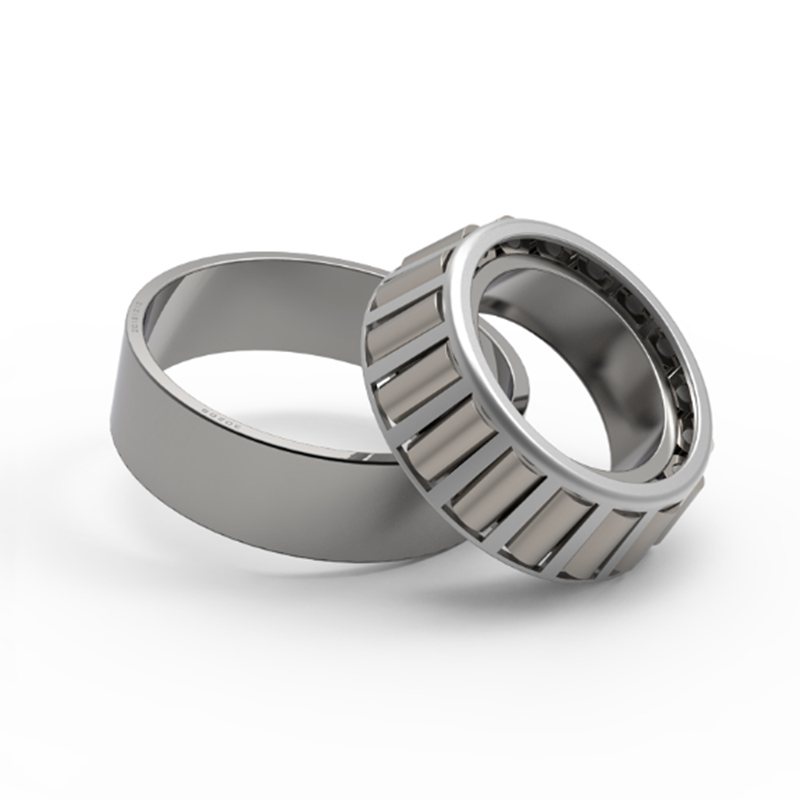

Single row tapered roller bearings, inch sizes, are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.
Item No :
LM11749/LM11710Order(MOQ) :
100pcsPayment :
T/T L/C Western Union, MoneygramProduct Origin :
ChinaShipping Port :
Guangzhou or ShenzhenLead Time :
5-60 daysSingle Row Inch Size Tapered Roller Bearings

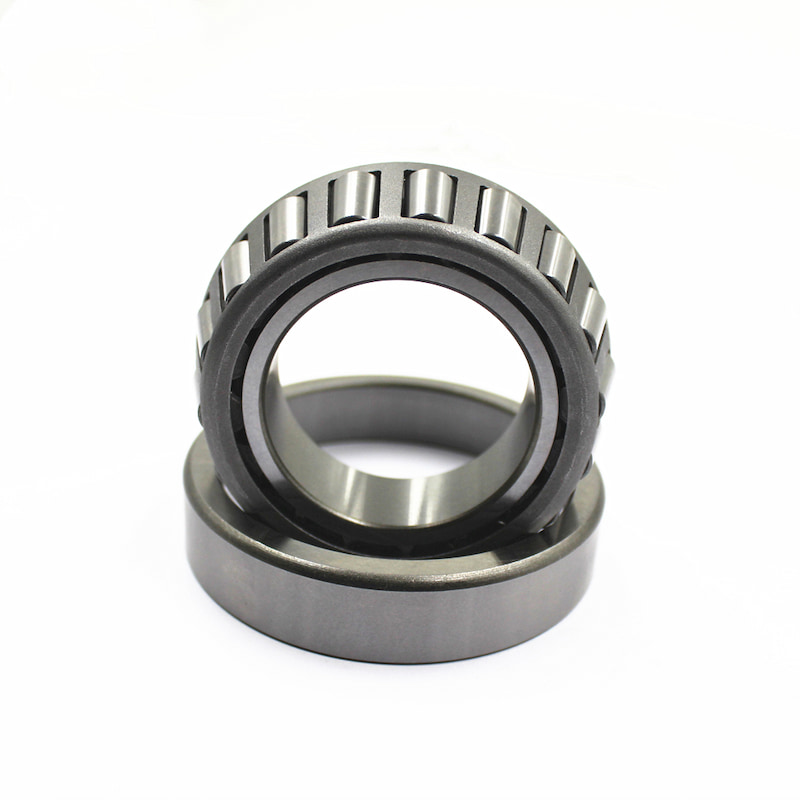

Single row inch tapered roller bearings are the basic type and the most widely used type of tapered roller bearings. It consists of an inner ring component and an outer ring. It is usually installed as one of an opposing pair. During equipment assembly, single-row bearings can be "set" to the desired clearance (end clearance) or preload to optimize performance. Single row inch tapered roller bearings are widely used in automobiles, rolling mills, mining, metallurgy, plastic machinery and other industries.
Inch Size Taper Roller Bearings Features :
Application :
It is widely use for
Display:

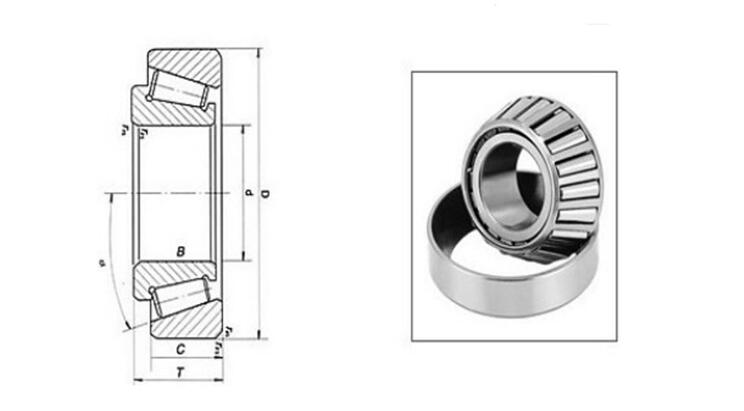

Single Row Inch Taper Roller Bearings Size Chart：
|
Bearing |
I.D |
0.D |
|
|
|
d |
D |
B |
||
|
毫米 |
毫米 |
毫米 |
||
|
LM11749/LM11710 |
17.462 |
39.878 |
13.843 |
0.08 |
|
LM102949/LM102910 |
45.2425 |
73.4314 |
19.558 |
0.32 |
|
LM11949/LM11910 |
19.05 |
45.237 |
15.494 |
0.12 |
|
LM12649/LM12610 |
21.43 |
50.005 |
17.526 |
0.16 |
|
LM12749/LM12710 |
21.986 |
45.237 |
15.494 |
0.12 |
|
LM236749/LM236710 |
184.15 |
234.95 |
34.0106 |
3.34 |
|
LM451349DW/LM451310/LM451310D |
266.7 |
355.6 |
230.188 |
61.5 |
|
LM545849/LM545810 |
234.95 |
314.325 |
49.2252 |
9.79 |
|
LM654649/LM654610CD |
285.75 |
380.898 |
139.7 |
40.655 |
|
LM67048/LM67010 |
31.75 |
59.13 |
15.875 |
0.18 |
Advantage of WIS Bearing:
With over 15 years bearing industry experience ,we have perfect group pf technical engineers give you best support
Direct manufacturer of bearings can offer you lowest price with small MOQ
WIS bearings can provide OEM and ODM service as to your sample or drawings.
We focus on quality during production and guarantee 100% quality inspection before delivery
WIS bearings give you on time delivery
Single row tapered roller bearings, inch sizes, are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.
Learn More
In tapered roller bearings, the outer ring is sometimes called the "outer ring" and the inner ring assembly is sometimes called the "inner ring." These are sometimes called "sub-units" and the individual bearings are called "units".Our tapered roller bearings are available in a variety of designs and can be customized to your specific speed, load, contamination, temperature or vibration conditions.
Learn More
