The chain sheave bearings are used with installed at the axis of chain for vertical movement of forklift carriages or chain guide of telescopic crane cars.
They are a core component of forklift mast, and they have a role to move the carriage of forklift. They guide the transportation of forklift chain belt also.They are specially designed to endure eccentric, radial load and to have corrosion resistance at the outside.
Item No :
780708KOrder(MOQ) :
100pcsPayment :
TT LC western UnionProduct Origin :
ChinaShipping Port :
Shenzhen Guangzhou TianjinForklift Chain Sheaves Bearing
The chain sheave bearings are used with installed at the axis of chain for vertical movement of forklift carriages or chain guide of telescopic crane cars.
They are a core component of forklift mast, and they have a role to move the carriage of forklift. They guide the transportation of forklift chain belt also.They are specially designed to endure eccentric, radial load and to have corrosion resistance at the outside.
The endurance of our products are strengthened through design for eccentric and high level load, specially produced snap rings, various surface processing, closed forging process and special harden heat treatment for bearings.
Forklift Chain Sheaves Bearing size :
Bearing Name |
Forklift Chain Sheaves Bearing 780708K |
d |
40 mm |
D |
118 mm |
D1 |
100 mm |
C |
34 mm |
B |
23 mm |
θ |
6° |

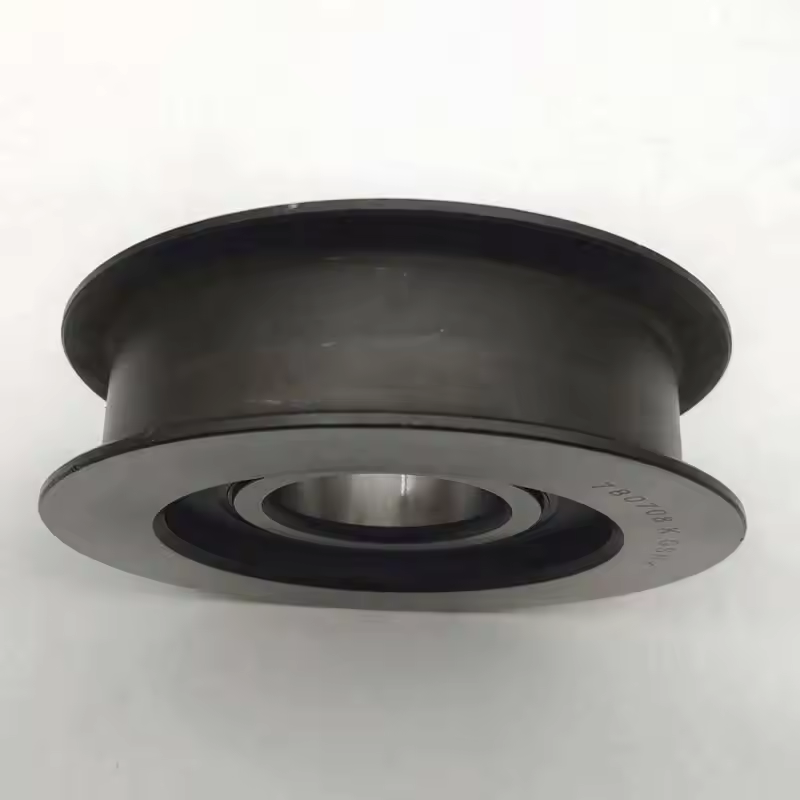

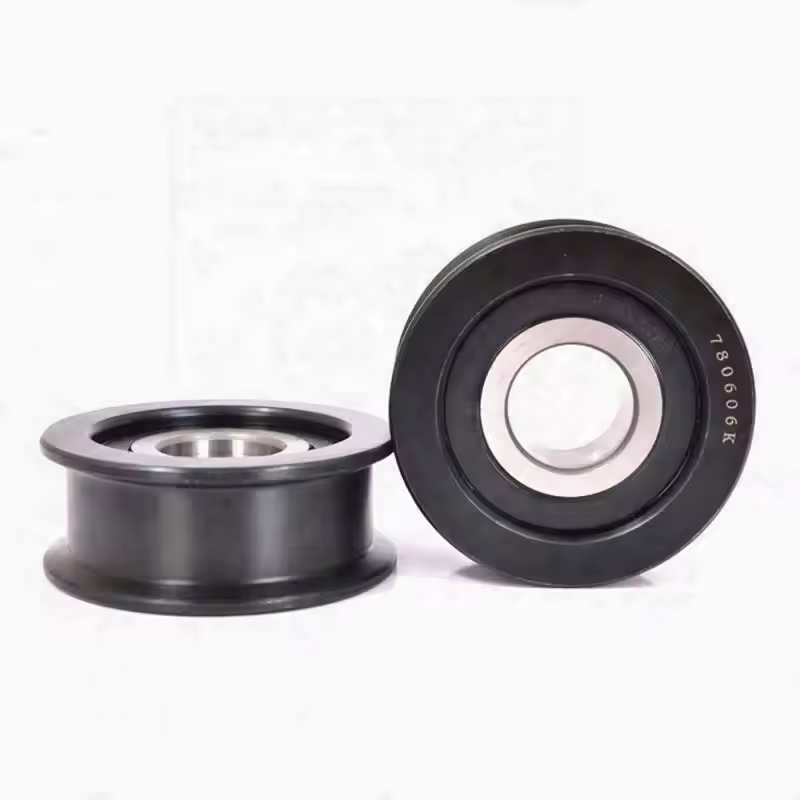

Photo:
Forklift Chain Sheaves Bearing catalogue :
Type | Size(mm) | Rated l Cr |
oad(KN Cor |
Reference model |
d*D/D1*C/C1*B | ||||
CG25R1-2 | 25*117/104*46.5/32.5*48.5 | 85.35 | 110 | |
CG25R1-3 | 25*108/90*46.5/32.5*48.5 | 85.35 | 110 | |
CG30R1-1 | 30*73/65*27/20.5*28 | 50 | 62 | |
CG30R1-2 | 30*77/65*34/22*26 | 57.8 | 72.8 | 780606K2 |
CG30R1-3 | 30*90/80*36/27*19 | 48 | 50 | |
CG35R1-14M1 | 35*112/102*47/39.4*49 | 115.2 | 143 | |
CG35R1-15M1 | 35*120/112*47/39.4*49 | 115.2 | 143 | |
CG35R1-16M11 | 35*79/70*26/20*20 | 44.5 | 65.79 | |
CG35R1-25M1 | 35*114.3/98.8*56/47*58 | 160 | 284 | |
CG35R1-27M1 | 35*88/80*27/23*28 | 88 | 95 | |
CG35R1-28 | 35*90/62*28.35/4*21.7 | 45.9 | 60.6 | |
CG38R1-3 | 38.1*190.5/177.8*50.8/42*50.8 | 164.6 | 239.1 | |
CG38R1-4 | 38.1*155.5/143*50.8/42*38 | 164.6 | 239.1 | |
CG38R1-5 | 38.1*165/152*50.8/42*50.8 | 164.6 | 239.1 | |
CG40R1-8 | 40*108/94*33.2/25*23 | 52.8 | 63.6 | |
CG40R1-9 | 40*111/101*36/27*26 | 58.3 | 79.9 | |
CG40R1-12 | 40*107.95/95*33.32/25.4*23 | 52.8 | 63.6 | |
CG40R1-18 | 40*95.3/85*34.5/27*30 | 76.2 | 102 | |
CG40R1-19 | 40*100/85*36/26*38 | 122.1 | 186.1 | |
CG40R1-30 | 40*124/104*43/30*30 | 83.8 | 116.4 | |
CG40R1-34 | 40*100/82*36/25*26 | 58.3 | 79.9 | |
CG40R1-35 | 40*108/90*36/25*26 | 58.3 | 79.9 | |
CG40R1-37 | 40*100/84*36/27*26 | 58.3 | 79.9 | |
CG40R1-43 | 40*93/80*26/20*20 | 51.3 | 74.7 | |
CG40R1-44 | 40*139/127*50.8/42*38 | 125 | 156 | |
CG40R1-48 | 40*103.12/90.93*50.8/41.91*38.1 | 100 | 126 | |
CG40R1-51 | 40*107.8/95.4*36.6/28.5*23 | 52.8 | 63.6 | |
CG40R1-53 | 40*92/82*36/26*26 | 58.3 | 79.9 | |
CG45R1-1 | 45*150/128*69/50*50.8 | 174 | 230 | |
CG45R1-2 | 45*174/151*72/51*50.8 | 174 | 230 | |
CG45R1-3 | 45*174/150*72/50*51 | 174 | 230 | |
CG45R1-4 | 45*150/129*69/50*51 | 174 | 230 | |
CG45R1-5 | 45*136/127*38/31*40 | 150.1 | 275.8 | |
CG45R1-6 | 45*123/95*60/45*65 | 160 | 284.5 | |
CG45R1-7M1 | 45*152.4/129.2*67/56*69 | 253 | 397 | |
CG45R1-8M11 | 45*94/80*34/27*17.2 | 45 | 85.3 | |
CG45R1-9 | 45*150/128*69/51*50 | 174 | 230 | |
CG45R1-13 | 45*138/125*38/31*40 | 150.1 | 275.8 | |
CG45R1-14 | 45*105/91*34/25*30 | 85 | 104 | |
CG45R1-15 | 45*130/114.5*44.5/35*24.5 | 85 | 150 | |
CG45R1-16 | 45*110/100*45/38*45 | 110 | 163 | |
CG50R1-3 | 50*130/106*52/36*40 | 187 | 217 | |
CG50R1-4 | 50*124/104*43/31*30 | 76.5 | 113.7 | |
CG50R1-5 | 50*124/104*46/35*27 | 76.5 | 113.7 | |
CG50R1-9 | 50*128/110*42.5/34*44.5 | 187 | 217 | |
CG50R1-10 | 50*124/104*43/31*30 | 76.5 | 113.7 | |
CG50R1-11 | 50*124/104*56/41*35 | 76.5 | 113.7 | |
CG50R1-12M1 | 50*115/100*40/33*42 | 123.8 | 201.7 | |
CG50R1-13 | 50*124/104*60/45*35 | 76.5 | 113.7 | |
CG50R1-14 | 50*143/129*45/35*44 | 161.7 | 275.8 | |
CG50R1-15M11 | 50*105/90*40/32.5*32 | 111.2 | 185.1 | |
CG50R1-16M1 | 50*165/147*50/40.4*37 | 141 | 209 | |
CG50R1-17 | 50*128/110*46.5/38*44.5 | 187 | 217 | |
CG55R1-1 | 55*158/130*65/55*67 | 265.8 | 391.5 | |
CG55R1-2 | 55*145/120*56/41*40 | 155 | 196 | |
CG55R1-4 | 55*146/130*47/37*40 | 155 | 196 | |
CG55R1-7M1 | 55*135/110*56/45*58 | 135 | 146 | |
CG55R1-8 | 55*144/120*56/42*40 | 155 | 196 | |
CG55R1-10 | 55*144/122*56/43*40 | 155 | 196 | 722711 |
CG55R1-11 | 55*144/124*68/51*50 | 265.8 | 391.5 | |
CG55R1-12 | 55*155/135*42/34*27 | 117.5 | 137 | |
CG55R1-13 | 55*156/140*57/42*44.7 | 160.8 | 208 | |
CG70R1-1 | 70*176/160*68/49*53.4 | 250 | 365 | |
CG70R1-2 | 70*184/170*47/37*40 | 186.7 | 269.7 | |
CG75R1-1 | 75*216/200*80/68*68 | 480 | 690 | |
CG75R1-3 | 75*216/200*91/72*68 | 480 | 690 | |
CG80R1-3 | 80*246/230*73/62*77 | 505 | 644 | |
CG95R1-1 | 95*246/230*80/68*68 | 612 | 817 |
