UCP 200 Pillow Block Mounted Bearings offer performance superior to other similar products on the market. It's durable and non-perishable, which means less downtime and fewer replacements, saving you time and money. Custom aperture sizes available.
Item No :
UCP201 UCP202 UCP203Order(MOQ) :
100pcsPayment :
T/T L/C Western Union, MoneygramProduct Origin :
ChinaShipping Port :
Guangzhou or ShenzhenLead Time :

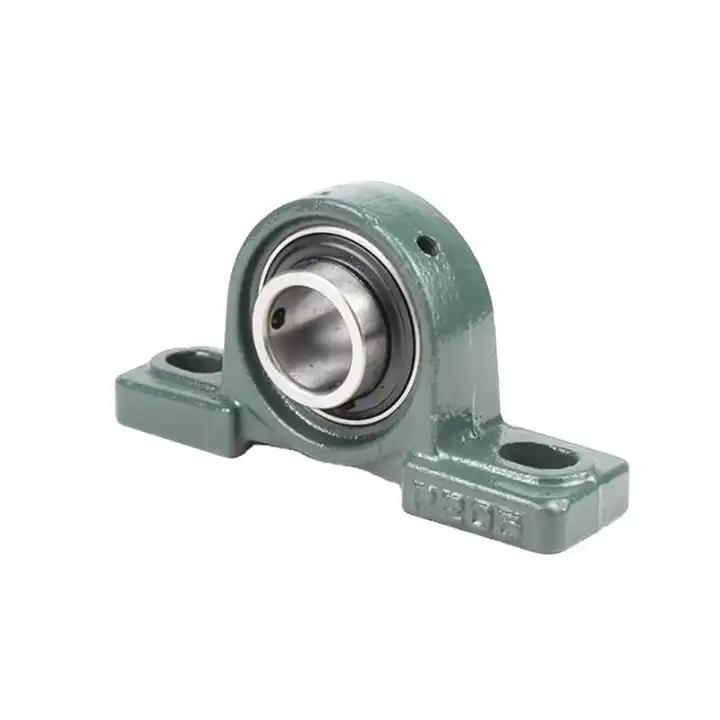

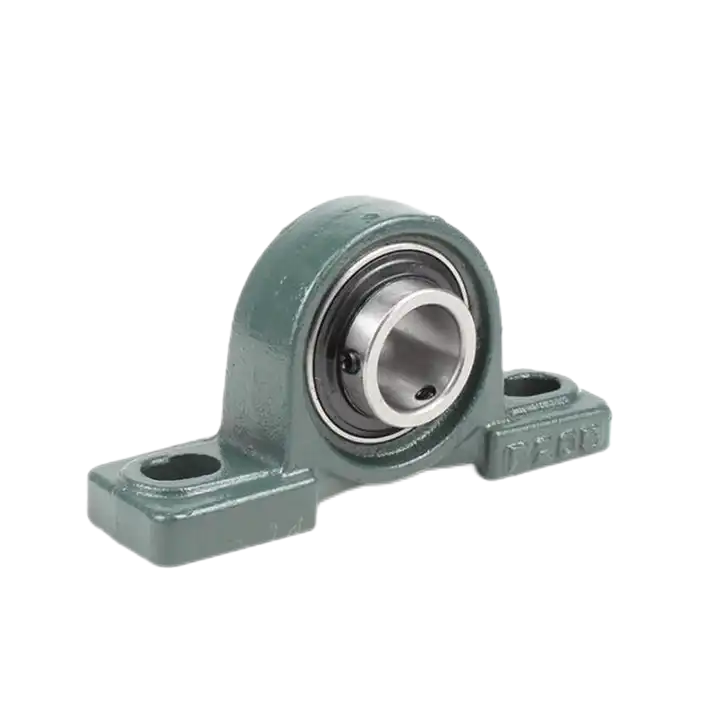

5-60 daysFoot Mounted Pillow Block Bearings UCP201 UCP202 UCP203
The chromium steel alloy (AISI 52100) body is highly wear-resistant, meets all industry standards and will not deteriorate under high pressure. It does not fail under extreme pressure and holds parts together. Each bearing has a solid cast iron housing that provides the bearing with a solid base to keep it in place.
Pillow Block Bearings Size Chart:
Unit No |
Shaft Dia |
Dimensions (mm) |
Weight(kg) |
|||||||||
|
|
D |
B |
S |
L |
J |
H |
H1 |
A |
N |
N1 |
|
UCP201 |
12 |
40 |
27.4 |
11.5 |
125 |
96 |
30.2 |
57 |
36 |
13 |
19 |
0.6 |
UCP202 |
15 |
40 |
27.4 |
11.5 |
125 |
96 |
30.2 |
57 |
36 |
13 |
19 |
0.7 |
UCP203 |
17 |
40 |
27.4 |
11.5 |
125 |
96 |
30.2 |
57 |
36 |
13 |
19 |
0.7 |
UCP204 |
20 |
47 |
31 |
12.7 |
127 |
95 |
33.3 |
65 |
38 |
13 |
19 |
0.75 |
UCP205 |
25 |
52 |
34.1 |
14.3 |
140 |
105 |
36.5 |
71 |
38 |
13 |
19 |
0.8 |
UCP206 |
30 |
62 |
38.1 |
15.9 |
165 |
121 |
42.9 |
83 |
48 |
17 |
23 |
1.3 |
UCP207 |
35 |
72 |
42.9 |
17.5 |
167 |
127 |
46.7 |
93 |
48 |
17 |
23 |
1.6 |
UCP208 |
40 |
80 |
42.9 |
19 |
184 |
137 |
49.2 |
100 |
54 |
17 |
23 |
1.9 |
UCP209 |
45 |
85 |
49.2 |
19 |
190 |
146 |
54 |
106 |
54 |
17 |
23 |
2.2 |
UCP210 |
50 |
90 |
51.6 |
19 |
206 |
159 |
57.2 |
114 |
60 |
20 |
26 |
2.6 |
UCP211 |
55 |
100 |
55.6 |
22.2 |
219 |
171 |
63.5 |
126 |
60 |
20 |
26 |
3.3 |
UCP212 |
60 |
110 |
65.1 |
25.4 |
241 |
184 |
69.8 |
138 |
70 |
20 |
26 |
4.6 |
UCP213 |
65 |
120 |
65.1 |
25.4 |
265 |
203 |
76.2 |
151 |
70 |
25 |
31 |
5.9 |
UCP214 |
70 |
125 |
74.6 |
30.2 |
266 |
210 |
79.4 |
157 |
72 |
25 |
31 |
6.6 |
UCP215 |
75 |
130 |
77.8 |
33.3 |
275 |
217 |
82.6 |
163 |
74 |
25 |
31 |
7.4 |
UCP216 |
80 |
140 |
82.6 |
33.3 |
292 |
232 |
88.9 |
175 |
78 |
25 |
31 |
9.0 |
UCP217 |
85 |
150 |
85.7 |
34.1 |
310 |
247 |
95.2 |
187 |
83 |
25 |
31 |
11 |
UCP218 |
90 |
160 |
96 |
39.7 |
327 |
262 |
101.6 |
200 |
88 |
27 |
33 |
13 |
UCP220 |
100 |
180 |
108 |
42 |
380 |
308 |
115 |
225 |
95 |
30 |
38 |
16 |
UCP305 |
25 |
62 |
38 |
15 |
175 |
132 |
45 |
85 |
45 |
17 |
20 |
1.4 |
UCP306 |
30 |
72 |
43 |
17 |
180 |
140 |
50 |
95 |
50 |
17 |
20 |
1.8 |
UCP307 |
35 |
80 |
48 |
19 |
210 |
160 |
56 |
106 |
56 |
17 |
25 |
2.8 |
UCP308 |
40 |
90 |
52 |
19 |
220 |
170 |
60 |
116 |
60 |
17 |
27 |
3.0 |
UCP309 |
45 |
100 |
57 |
22 |
245 |
190 |
67 |
129 |
67 |
20 |
30 |
4.1 |
UCP310 |
50 |
110 |
61 |
22 |
275 |
212 |
75 |
143 |
75 |
20 |
35 |
5.8 |
UCP311 |
55 |
120 |
66 |
25 |
310 |
236 |
80 |
154 |
80 |
20 |
38 |
7.4 |
UCP312 |
60 |
130 |
71 |
26 |
330 |
250 |
85 |
165 |
85 |
25 |
38 |
9.4 |
UCP313 |
65 |
140 |
75 |
30 |
340 |
260 |
90 |
176 |
90 |
25 |
38 |
10.0 |
UCP314 |
70 |
150 |
78 |
33 |
360 |
280 |
95 |
187 |
90 |
27 |
40 |
12.0 |
UCP315 |
75 |
160 |
82 |
33 |
380 |
290 |
100 |
198 |
100 |
27 |
40 |
14.0 |
UCP316 |
80 |
170 |
86 |
34 |
400 |
300 |
106 |
210 |
110 |
27 |
40 |
18.0 |
UCP317 |
85 |
180 |
96 |
40 |
420 |
320 |
112 |
220 |
110 |
33 |
45 |
20.0 |
UCP318 |
90 |
190 |
96 |
40 |
430 |
330 |
118 |
235 |
110 |
33 |
45 |
24.0 |
UCP319 |
95 |
200 |
103 |
41 |
470 |
360 |
125 |
250 |
120 |
36 |
50 |
29.0 |
UCP320 |
100 |
215 |
108 |
42 |
490 |
380 |
140 |
275 |
120 |
36 |
50 |
35.0 |
UCP321 |
105 |
225 |
112 |
44 |
490 |
380 |
140 |
280 |
120 |
36 |
50 |
35.0 |
UCP322 |
110 |
2240 |
117 |
46 |
520 |
400 |
150 |
300 |
140 |
40 |
55 |
45.0 |
UCP324 |
120 |
260 |
126 |
51 |
570 |
450 |
160 |
320 |
140 |
40 |
55 |
55.0 |
UCP326 |
130 |
280 |
135 |
54 |
600 |
480 |
180 |
355 |
140 |
40 |
55 |
72.0 |
UCP328 |
140 |
300 |
145 |
59 |
620 |
500 |
200 |
390 |
140 |
40 |
55 |
89.0 |
Feature:
Long-Lasting Performance - Our mounted pillow block bearings are made from ultra-durable bearing steel, ensuring it can withstand the toughest conditions and provide long-lasting performance.
Reduced Maintenance Costs - With our high-quality industrial bearings, you can reduce maintenance costs and downtime, saving you time and money in the long run.
Easy to Install - These spherical insert bearings are easy to install, even by non-professionals.
Self-Aligning - Our bearings are self-aligning, meaning they automatically adjust for any misalignment, providing better performance and longer bearing life.
Display:
Application :
Advantage of WIS Bearing:
With over 15 years bearing industry experience ,we have perfect group pf technical engineers give you best support
Direct manufacturer of bearings can offer you lowest price with small MOQ
WIS bearings can provide OEM and ODM service as to your sample or drawings.
We focus on quality during production and guarantee 100% quality inspection before delivery
WIS bearings give you on time delivery
