6206-2RS Sealed Ball Bearing 30x62x16mm

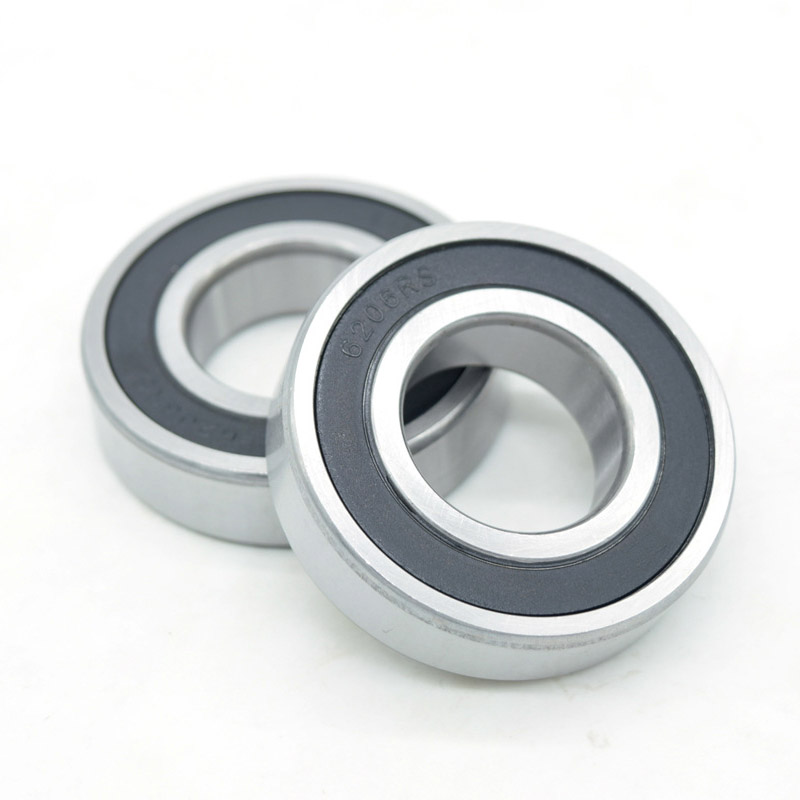

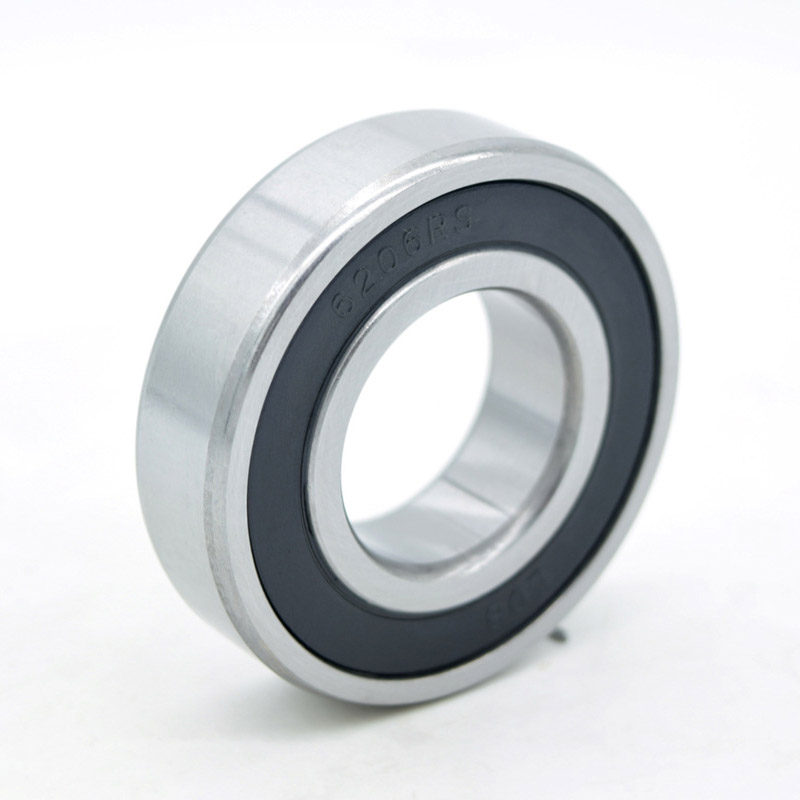

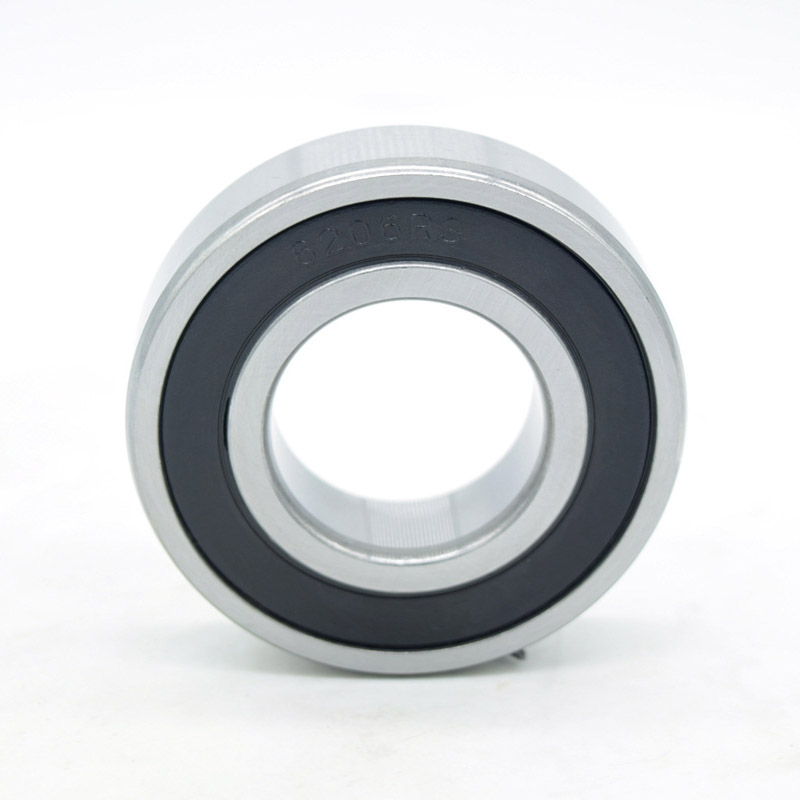

6206-2RS Sealed Ball Bearing 30x62x16mm

This 6206-2RS bearing 30x62x16 is versatile. Its design is very simple, non-detachable, suitable for high and even very high speeds, operates ruggedly and requires little maintenance. Deep groove ball bearings have deep raceway grooves close to the balls and can withstand axial loads in both directions as well as radial loads even at high speeds.

  • Item No :

    6206-2RS
  • Order(MOQ) :

    100pcs
  • Payment :

    T/T L/C Western Union, Moneygram
  • Product Origin :

    China
  • Shipping Port :

    Guangzhou or Shenzhen
  • Lead Time :

    5-60 days



6206-2RS Sealed Ball Bearing 30x62x16mm



The 6206-2RS sealed bearing is a sealed ball bearing with dimensions 30x62x16. This single row bearing is designed to support radial loads. It is made of chromium steel for durability and resistance to deformation under heavy loads. This bearing has rubber seals on both sides to keep lubricants out and prevent contaminants from entering, and it is already lubricated at the manufacturer, so no additional lubrication is required.

Rolling bearings use rolling elements to maintain separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: spherical, cylindrical, sphere, barrel, needle, shaft or cone. All rolling bearings are open, shielded or sealed. Sealed bearings are lubricated with oil or grease at the bearing factory, while open and shielded bearings should be lubricated in place and relubricated periodically based on usage. Guards protect the bearing's working parts from environmental debris that may be introduced, which may reduce the speed and service life of the ball bearing.



6206-2RS Deep Groove Ball Bearing:



Bearing No.

 6206-2RS

Inner Diameter

30 mm

Outer Diameter

62 mm

Width

16mm

Seal type

Rubber seal





Feature:

  • Single-row bearing for supporting radial loads
  • Chrome steel for durability and resistance to deformity under heavy loads
  • Rubber seals on both sides of the bearing to keep lubricant in and contaminants out
  • Lubricated at manufacturer for no additional lubrication required



Application :

  • Motorcycles
  • Small power tool
  • ractor gearbox
  • Machine tool gearboxes
  • Automobile
  • Textile industry
  • Agricultural
  • Electric motors



 6206-2RS Sealed Ball Bearing 30x62x16mm

6206-2RS Bearing 30x62x16 Sealed



More Related Models :

Bearing No.

I.D

O.D

W

Load Rating(KN)

Unit Weight



d

D

B

Dynamic

Static





mm

mm

mm

Cr

Cor

kg

6200

10

30

9

5.1

2.39

0.032

6201

12

32

10

6.1

2.75

0.037

6202

15

35

11

7.75

3.6

0.045

6203

17

40

12

9.6

4.6

0.065

6204

20

47

14

12.8

6.65

0.106

6205

25

52

15

14

7.85

0.128

6206

30

62

16

19.5

11.3

0.199

6207

35

72

17

25.7

15.3

0.288

6208

40

80

18

29.1

17.8

0.366

6209

45

85

19

32.5

20.4

0.407

6210

50

90

20

35

23.2

0.463

6211

55

100

21

43.5

29.2

0.607

6212

60

110

22

52.5

36

0.783

6213

65

120

23

57.5

40

0.99

6214

70

125

24

62

44

1.07

6215

75

130

25

66

49.5

1.18

6216

80

140

26

72.5

53

1.4

6217

85

150

28

83.5

64

1.79

6218

90

160

30

96

71.5

2.15

6219

95

170

32

109

82

2.62

6220

100

180

34

122

93

3.19

Remark

Note:Above-mentioned products include its modification series,such as Z,2Z,RS,and 2RS etc.
