204RY2, 204PY3,838607A, AA21480 John Deere Maintenance free Farming Planter Bearing
204RY2 Farming Planter Bearing are with particularly thick-walled outer rings. In addition to high radial forces, these bearings can also support axial forces in both directions.The outer rings have a crowned or cylindrical outside surface. Designs with a crowned outside surface are used where they are inclined in relation to the mating track and edge stresses must be avoided.
Item No :
204RY2, 204PY3,838607A, AA21480Order(MOQ) :
100pcsPayment :
T/T L/C Western Union, MoneygramProduct Origin :
ChinaShipping Port :
Guangzhou or ShenzhenLead Time :
5-60 days204RY2, 204PY3, AA21480, DG1645-2RS, Z9504DK John Deere Farming Planter Bearing
204RY2 is an Farming Planter Bearing with a round Bore manufactured to be double sealed on both sides to prevent any dust & debris from entering the bearing. WISON supply 204RY2 are ideal for applications requiring contact with corrosive materials in harsh environments and have been pre-lubricated with grease, allowing it to be ready for use upon delivery.
Agriculture bearings can be used: After sewing equipment, machine tool spindles, plug-in, ordinary type cooling tower, resistance welding machine, aging furnace, hobbing machine, environmental protection equipment, whirlpool pump, ceramics engraving machine, metal packaging machinery, fishing machinery, high pressure reactor, offset printing, aerospace, rubber granulating machine, plastic machine, chip conveyor, and so on purpose.
Wison make 204RY2 Farming Planter Bearing Discription below :
Bearing No. |
204RY2, 838607A,204PY3, AA21480, DG1645-2RS, Z9504DK |
Inside Diameter |
16 mm |
Outside Diameter |
45.225mm |
Inner Width |
18.67mm |
Outer Width |
15.94mm |

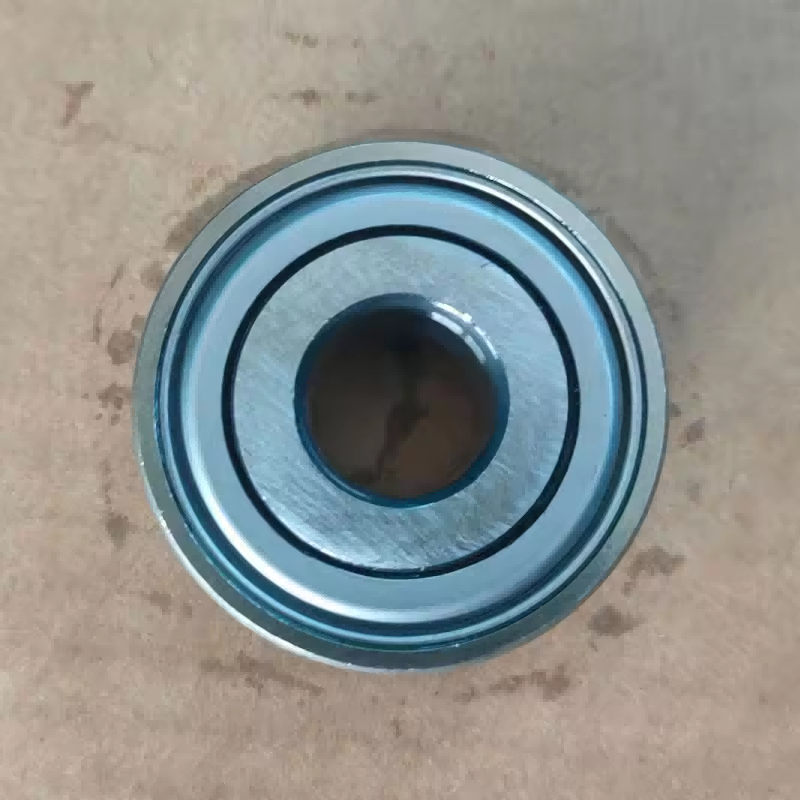

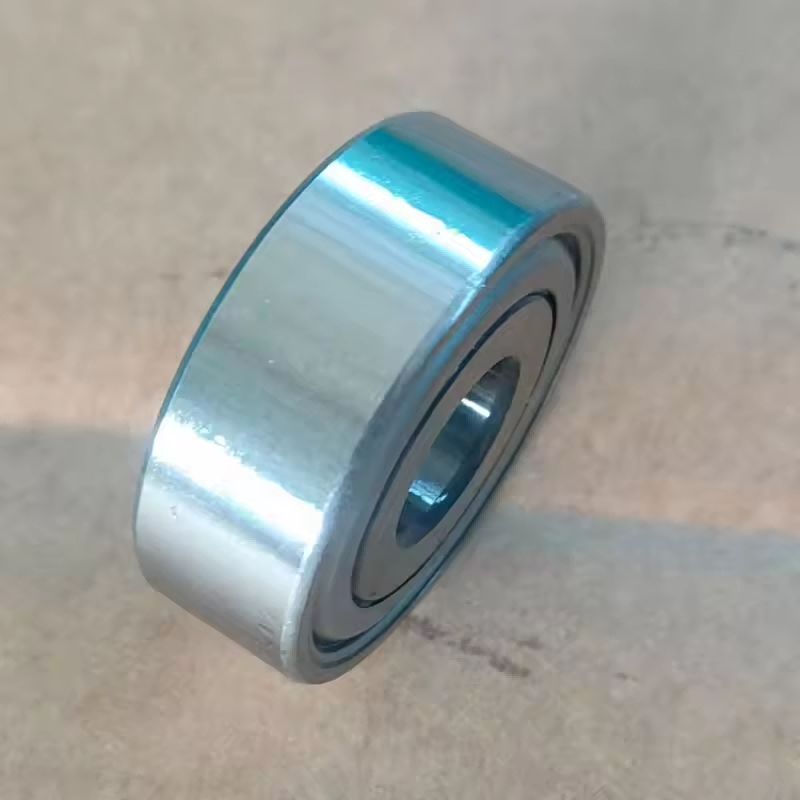

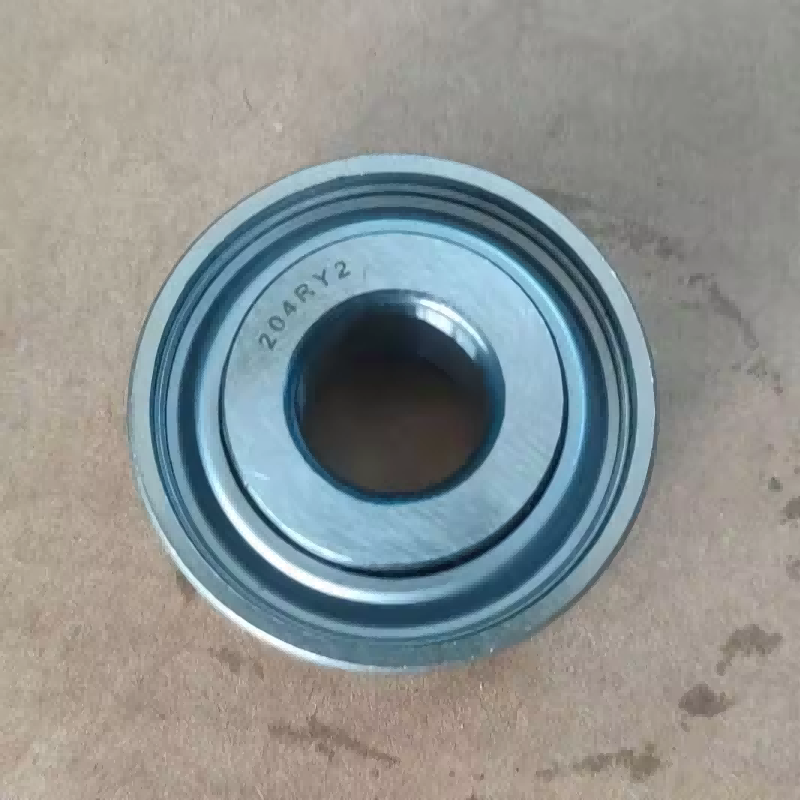

Photo:
Special Agricultural Ball Bearings Models:
The WISON Agricultural line of bearings is focused on providing the features and benefits that allow our customers to exceed the expectations of today and prepare for the increased demands of tomorrow. The WISON Agricultural Product line of bearings and assemblies are designed to meet the regional and global requirements of this demanding application. WISON offers a complete range of standard and proprietary bearings and assemblies.
Our full line product offering includes
·Disc Harrow
·Flanged Disc
·Agricultural bearings including round, square bore, hex bore, and hex bore conveyor bearings
Bearing No. |
Boundary dimensions |
|||
d |
D |
B |
C |
|
5203KYY2 |
16.256 |
40 |
44 |
39 |
204RY2(838607A) |
16 |
45.225 |
18.67 |
15.94 |
5206KPP3 |
30.15 |
62 |
50 |
37 |
RX84 |
17.64 |
53.97 |
20.19 |
15.78 |
202NPP9 |
12.827 |
38.1 |
11 |
11 |
202RRE |
15 |
35 |
22.352 |
11 |
203JD |
17 |
40 |
14 |
12 |
203KRR3 |
15.951 |
50.8 |
15 |
15 |
203NPP9 |
15.9 |
40 |
12.95 |
12.95 |
Z9504-2RST |
19.05 |
45.225 |
15.494 |
15.494 |
Z9504AB |
19.06 |
45.225 |
15.494 |
15.494 |
204RR8 |
16.027 |
45.225 |
15.494 |
15.494 |
204RY2 |
16.027 |
45.225 |
18.669 |
15.494 |
205E-2RST |
19.202 |
52 |
21.107 |
15 |
205KP6 |
19.202 |
52 |
23.393 |
17.78 |
205KRR6 |
13.081 |
52 |
34.925 |
15 |
205KRR7 |
13 |
52 |
38.1 |
15 |
G205PPB7 |
23.813 |
52 |
35 |
15 |
205PPB7 |
23.813 |
52 |
35 |
15 |
205PP8 |
12.964 |
52 |
34.925 |
15 |
205PP9 |
19.202 |
52 |
34.925 |
15 |
205PP10 |
16 |
52 |
34.925 |
15 |
205PP12 |
16.129 |
52 |
38.1 |
15 |
206KRRB |
19.25 |
62 |
24 |
16 |
206PD2 |
31.75 |
65.088 |
18.524 |
17 |
207KYY |
35 |
72 |
25 |
17 |
FHR208-25CD |
39.688 |
80 |
30.2 |
18 |
W213-8445 |
55.575 |
120 |
55.55 |
28.905 |
88120-C4 |
20 |
47 |
20.8 |
14 |
88128R |
38.892 |
80 |
27.5 |
21 |
206GGH |
19.2 |
62 |
24 |
16 |
206KRD4 |
25 |
62 |
22.225 |
18 |
205GP |
16 |
53 |
19.4 |
18.2 |
205DDS3/4" |
19.05 |
53 |
19.4 |
18.2 |
205RVA |
19.2 |
52 |
21.03 |
15 |
Advantage of WISON Bearing:
With over 15 years bearing industry experience ,we have perfect group pf technical engineers give you best support
Direct manufacturer of bearings can offer you lowest price with small MOQ
WIS bearings can provide OEM and ODM service as to your sample or drawings.
We focus on quality during production and guarantee 100% quality inspection before delivery
WIS bearings give you on time delivery
